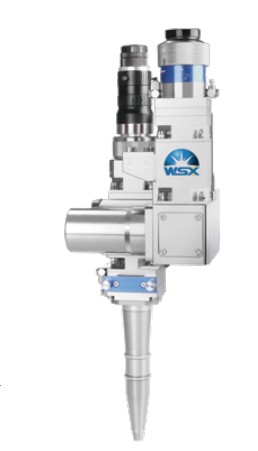

ND24 Wobble Welding Head

ND24 Wobble Welding Head

1.This wobble welding laser head is Cost-effective, having a

strong advantage in welding aluminum alloy and medium power

welding.

2.It adopts the motor to drive the X, Y-axis galvanometer lens

with a variety of wobbling modes. It significantly improves the

welding performance, like allowing the work piece with irregular

weld seam or large gap.

3.Full-sealed internal structure protects optical part from dust

pollution.

4.Air curtain parts prevent welding slag from entering head inside.

Protective window cartridge makes faster change.

Air curtain is optional.
