WSX new cutting head, welding head Online
2020 has passed. This year, COVID-19 launched a surprise attack on the whole nation. This year, we crossed the hardships and witnessed countless changes. In this year, we pushed ahead and we were able to overcome the difficulties and finally usher in the spring breaking through the earth.
Wan Shunxing people are no exception. This year, instead of being defeated by difficulties, we are more frustrated and more courageous. The more difficult the environment is, the more we meet difficulties. Everyone plays a light and heat role in their posts, and has also made Wan Shunxing a more brilliant 2020.
In 2020, wanshunxing adheres to the development orientation of "technology-based, innovation oriented" and continues to uphold the concept of "innovation, service and efficiency". It has developed a number of new laser cutting heads and welding heads, which help to improve the technical level of optoelectronic industry, promote the progress and development of domestic laser technology, and win-win with customers for common growth!
Here is a grand introduction to the new products on the market.

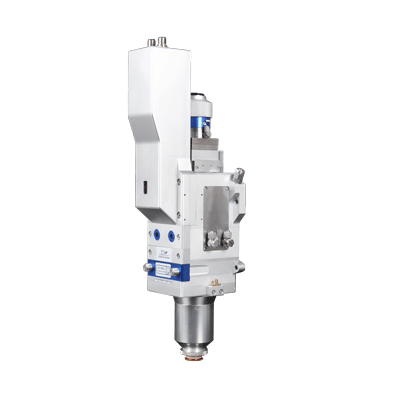

▼ NC150 optical fiber auto focusing cutting head
Product features
【1】 Fast focusing: precise focusing structure and precise and fast servo motor control system are adopted to significantly improve the perforation efficiency.
【2】 Condition monitoring: the temperature, humidity, air pressure and other monitoring sensors are set inside, which can monitor the operation status of the cutting head in real time. If the status is abnormal, the alarm signal can be output in time to ensure the safe and stable operation of the cutting head.
【3】 Efficient cooling: cavity water cooling, air cooling design, can avoid the problem of bad cutting caused by abnormal temperature.
【4】 Highly sealed: the internal structure is highly sealed, which can prevent the optical lens from being polluted by the external environment and prolong the service life of the lens.
【5】 Stable optical configuration and balanced smooth air flow structure significantly improve the cutting efficiency and cutting quality.
Product parameters
| Maximum air pressure | 25 Bar | Horizontal adjustment range | ±1.5 mm | Effective aperture | φ32 mm |
| Collimating focal length | 100 mm | Vertical focusing range | -16mm~+20mm | weight | 7.5 kg |
| Focal length | 200 mm | Applicable power | ≤ 15KW | ||
▼ NC 30a optical fiber auto focusing optical fiber cutting head
Product features
【1】 This cutting head is mainly used for laser below 3000W
【2】 The internal structure of the laser head is completely sealed to avoid the contamination of the optical lens
【3】 the laser head adopts two point alignment, and the focusing mechanism is driven by servo motor, which can significantly improve the perforation efficiency.
【4】 The structure of protective mirror adopts drawer type, which is easy to replace
【5】 It can be used in all kinds of lasers with QBH fiber connectors
Product parameters
| Maximum air pressure | 25Bar | Horizontal adjustment range | ±1.5mm | Effective aperture | 25mm |
| Collimating focal length | 75mm/100mm | Vertical focusing range | ±8mm | weight | 5.5kg |
| Focal length | 125mm/150mm/190mm | Applicable power | ≤3000W | ||
▼ NC 30c optical fiber 3D auto focusing optical fiber cutting head
Product features
【1】 This cutting head is mainly used for laser below 3000W
【2】 The internal structure of the laser head is completely sealed to avoid the contamination of the optical lens
【3】 The laser head is adjusted by two points to adjust. The focusing mechanism is driven by servo motor to automatically focus, which can significantly improve the efficiency of perforation.
【4】 The structure of protective mirror adopts drawer type, which is easy to replace
【5】 The sensor assembly adopts ceramic ring structure with low maintenance cost
【6】 It can be used in all kinds of lasers with QBH fiber connectors
Product parameters
| Maximum air pressure | 25Bar | Horizontal adjustment range | ±1.5mm | Effective aperture | 25mm |
| Collimating focal length | 75mm/100mm | Vertical focusing range | ±8mm | weight | 2.3kg |
| Focal length | 125mm/150mm/190mm/230mm | Applicable power | ≤3000W | ||
▼ SW18 3D cutting head
Product features
【1】 This cutting head is mainly used for laser below 2000W
【2】 The internal structure of the laser head is completely sealed to avoid the contamination of the optical lens
【3】 Archimedes helix is used in the focusing structure, which can achieve a larger focusing range (± 6mm) on a smaller structure, and the adjustment is accurate and reliable
【4】 The structure of protective mirror adopts drawer type, which is easy to replace
【5】 It can be used in all kinds of lasers with QBH fiber connectors
【6】 The whole structure is light and compact, which is suitable for manipulator
Product parameters
| Maximum air pressure | 25Bar | Horizontal adjustment range | ±1.5mm | Effective aperture | 20mm |
| Collimating focal length | 75mm/100mm | Vertical focusing range | ±6mm | weight | 5.5kg |
| Focal length | 125mm/150mm/190mm | Applicable power | ≤2000W | ||
▼ ND18a hand-held wire feed welding joint
Product features
【1】 The internal design is dexterous and has a good interactive control system, which expands the tolerance range of processing parts and weld width, solves the disadvantage of small light spot, and improves the weld forming.
【2】 It is light in shape and comfortable in grip with ergonomic design method. It is easy to master and operate.
【3】 With multiple safety alarms, the light will be automatically locked after the workpiece is removed, with high safety.
【4】 The welding seam is beautiful and fast, and there is no need to polish after welding.
【5】 It can be equipped with wire nozzle components and copper nozzles with various angles to meet the welding requirements of different products.
Product parameters
| maximum power | 1500W | Collimating focal length | 50mm | Focal length | 150mm |
| weight | 1.0kg | Adjustable format | 0-5mm | ||
▼ ND18q hand held Shampoo
Product features
【1】 The internal design is flexible, and the internal structure is completely sealed, which can avoid the optical part from being polluted by dust.
【2】 It is light in shape and comfortable in grip with ergonomic design method. It is easy to master and operate.
【3】 The protective lens adopts drawer structure, which is convenient to replace.
【4】 Using laser to remove rust has high production efficiency.
Product parameters
| maximum power | 1500W | Collimating focal length | 50mm | Focal length | 400mm |
| weight | 1.3kg | Adjustable format | 0-40mm | ||
